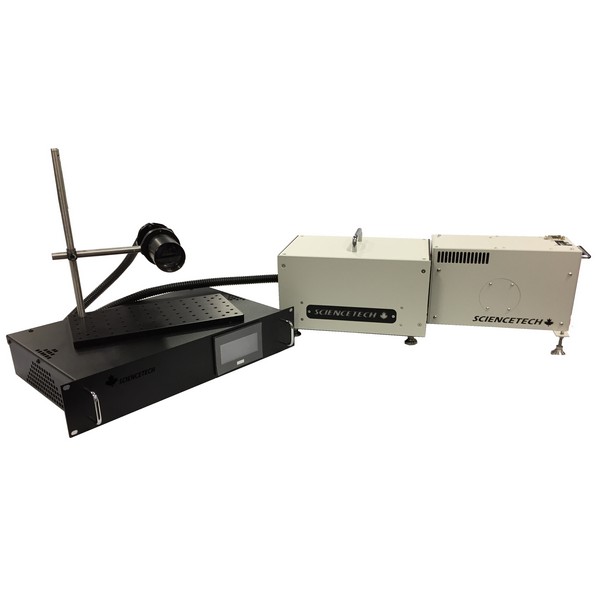

Simulateur Solaire Fibré – LightLine

Description :

Le LightLine a un modèle de base et trois configurations d’optique de sortie (des configurations d’optique de sortie personnalisées sont disponibles). Les options de configuration existent pour un éclairage de classe AAA jusqu’à 50 mm de côté et une intensité jusqu’à 18 soleils. La LightLine de Sciencetech peut correspondre aux normes ASTM, IEC et JIS de classe A pour les simulateurs solaires. Un certain nombre de filtres de masse d’air sont disponibles pour le Solar LightLine, ce qui vous permet de personnaliser l’instrument en fonction de vos besoins. En plus des filtres de correspondance spectrale, vous pouvez également ajouter des filtres d’intensité et d’autres filtres spectraux tels que des filtres bloquant les UV et les IR.

Caractéristiques techniques :

Ref#	A1-LA125	A1-C250	AX-LA125	AX-LA200	CX-C250	A4-LA125	A4-LA200	A4-C250
ASTM Classification	AAA	AAA	AAA	AAA	ACA	AAA	AAA	ACA
Target Size	25mm x 25mm	Ø12.5mm	20mm x 20mm	46mm x 46mm	Ø12.5mm	25mm x 25mm	50mm x 50mm	Ø12.5mm
Sun Level	1 Sun	4 Suns	3 Suns	1 Sun	9 Suns	Up to 4 Suns	1 Sun	9 Suns
Working Distance	125 to 175mm	125 to 175mm	125 to 175mm	225 to 300mm	125 to 175mm	125 to 175mm	225 to 300mm	125 to 175nm
Wavelenght Range	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)	350-1800nm (Standard Spectral Match 400-1100nm)
Air Mass Filter	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0	AM1.0D, AM1.5G, AM1.5D, AM2.0
Collimation Angle	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)	10° Half Angle (depend on selected optics)
Lamp	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling	300W Xenon, 1000h (average) Lifetime, Forced Air Cooling
Shutter	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle	Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle
Fiber Bundle Length	1.22m (4') Standard	1.22m (4') Standard	1.22m (4') Standard	1.22m (4') Standard	1.22m (4') Standard	1.22m (4') Standard	1.22m (4') Standard	1.22m (4') Standard
Power Supply Model	601-300	601-300	601-300	601-300	601-300	601-300	601-300	601-300
Imput Voltage/Current	Switchable 110-130V / 3A or 220-240V / 1.5A Operation	Switchable 110-130V / 3A or 220-240V / 1.5A Operation	Switchable 110-130V / 3A or 220-240V / 1.5A Operation	Switchable 110-130V / 3A or 220-240V / 1.5A Operation	Switchable 110-130V / 3A or 220-240V / 1.5A Operation	Switchable 110-130V / 3A or 220-240V / 1.5A Operation	Switchable 110-130V / 3A or 220-240V / 1.5A Operation²	Switchable 110-130V / 3A or 220-240V / 1.5A Operation
Environment	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation
Dimension (LxWxH)	58.7cm x 20.6cm x 20.8cm	58.7cm x 20.6cm x 20.8cm	76.8cm x 21.6cm x 38.3cm	76.8cm x 21.6cm x 38.3cm	76.8cm x 21.6cm x 38.3cm	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation	Temperature 10-35°C, Humidity 20-80%, Avoid Condensation
Weight	5kg	5kg	20kg	20kg	20kg	20kg	20kg	20kg
